Programmable Single Nozzle

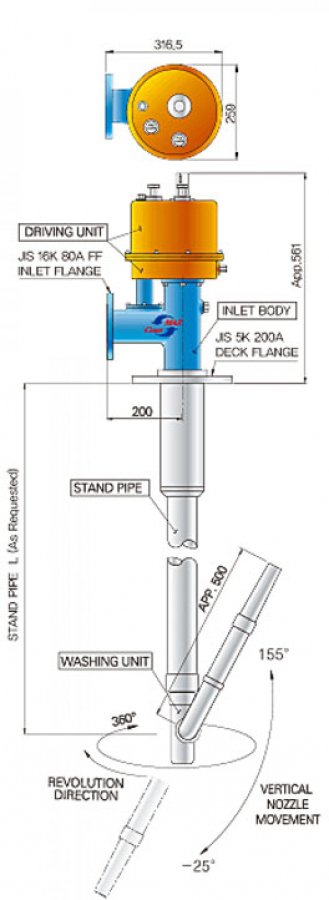

CLEANMAX UPM-4050 and UPM-6580 are completely a programmable single nozzle Tank Cleaning Machine to be equipped on the mounted tank top or deck. It will allow adapting in crude oil and product/chemical tankers as well as industrial applications. TANKTECH can provide the COW(Crude Oil Washing) manual and the shadow diagram to be thoroughly complied with the latest IMO Assembly Resolution A.897(21). Optimized single nozzle unit of CLEANMAX will give much more advantages compared with twin nozzle unit deliberating on the savings in pumping, stripping and piping and more longer effective jet length.
> Programmable Operation
– Horizontal revolution : 360°
– Vertical movement : -25°~ 155°
– Pitch for vertical movement : 1°and 3°
– Speed adjustment : Low, High
– Single or multi stage operation
– at any desired angle range
– Easy operation setting & all visible indication
– Compact design
– All setting can be adjusted during washing without stopping of cleaning agent supply.
– Infinite repeating cycle without stop of washing operation after setting of operation range
– No further requirement after setting of any required range
– Easy maintenance & inspection
