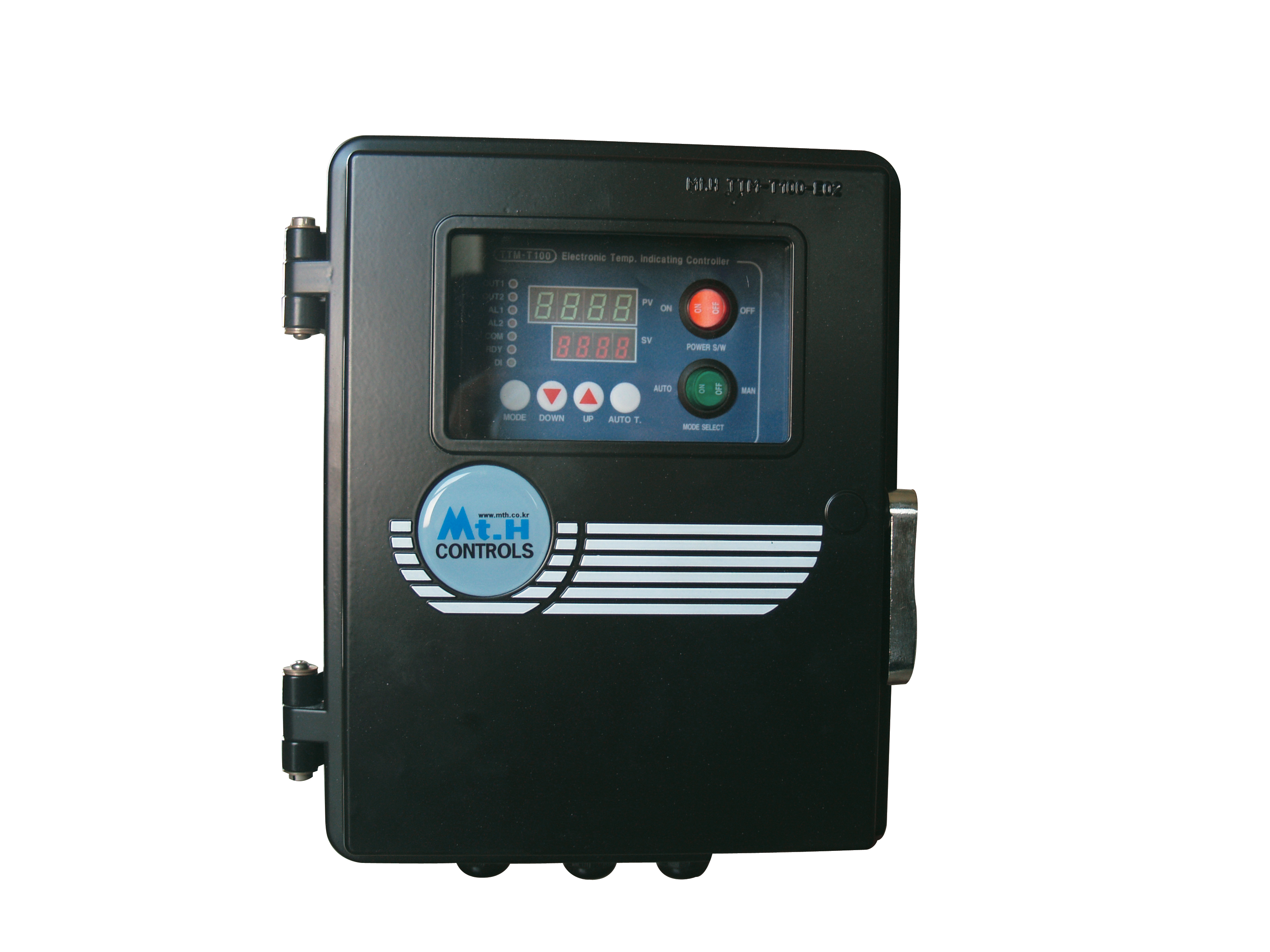

MODEL : TTM-T100E (CN93)
Summary
| Model | TTM-T100E (CN93) |
|---|---|
| Power Supply | AC 100~240V, 50/60Hz |
| Air Supply | 1.7 bar (25psi) |
| Power Consumption | 10 VA Below |
| Sensor Input | RTD (PT 100 Ω ) |
| Control Output | 4~20mA Current Output |
| Application Temp. & Humidity Range |
0~50°C, 20~90% RH |
| Correction Temp. & Humidity Range |
25~70°C, 5~95% RH |
Introduction
- • Pneumatic/Temperature Controller
- • Electric Controller
- • Pneumatic/Electric Positioner
- • I/P Convertor
- • Position Transmitter
Special Feature
It is an accessory Installed In PNEUMATIC CONTROL VALVE to ensure the performance of performance of product and to support stable control and user’s convenient recognition.
